The Bicentennial Organ

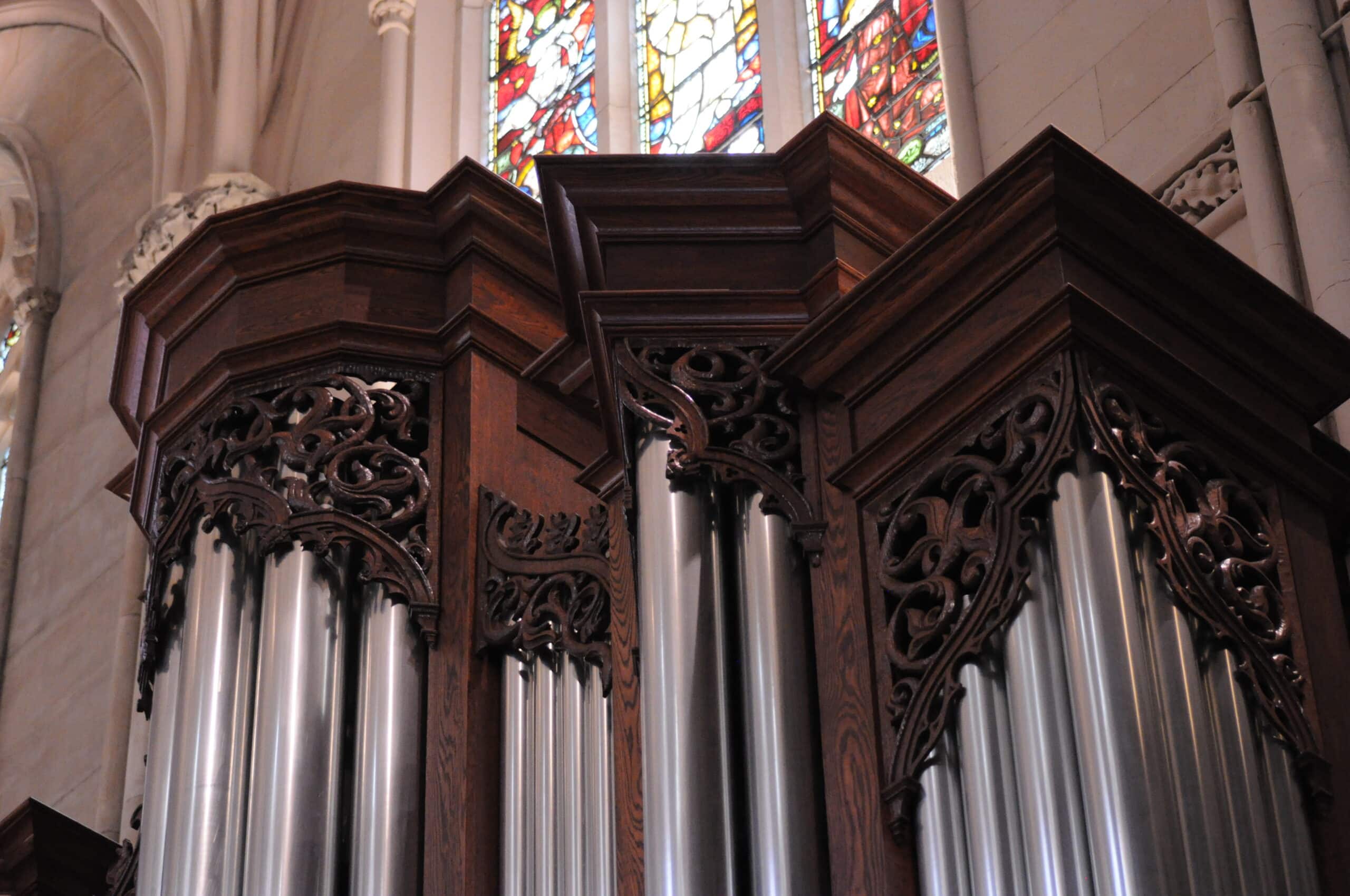

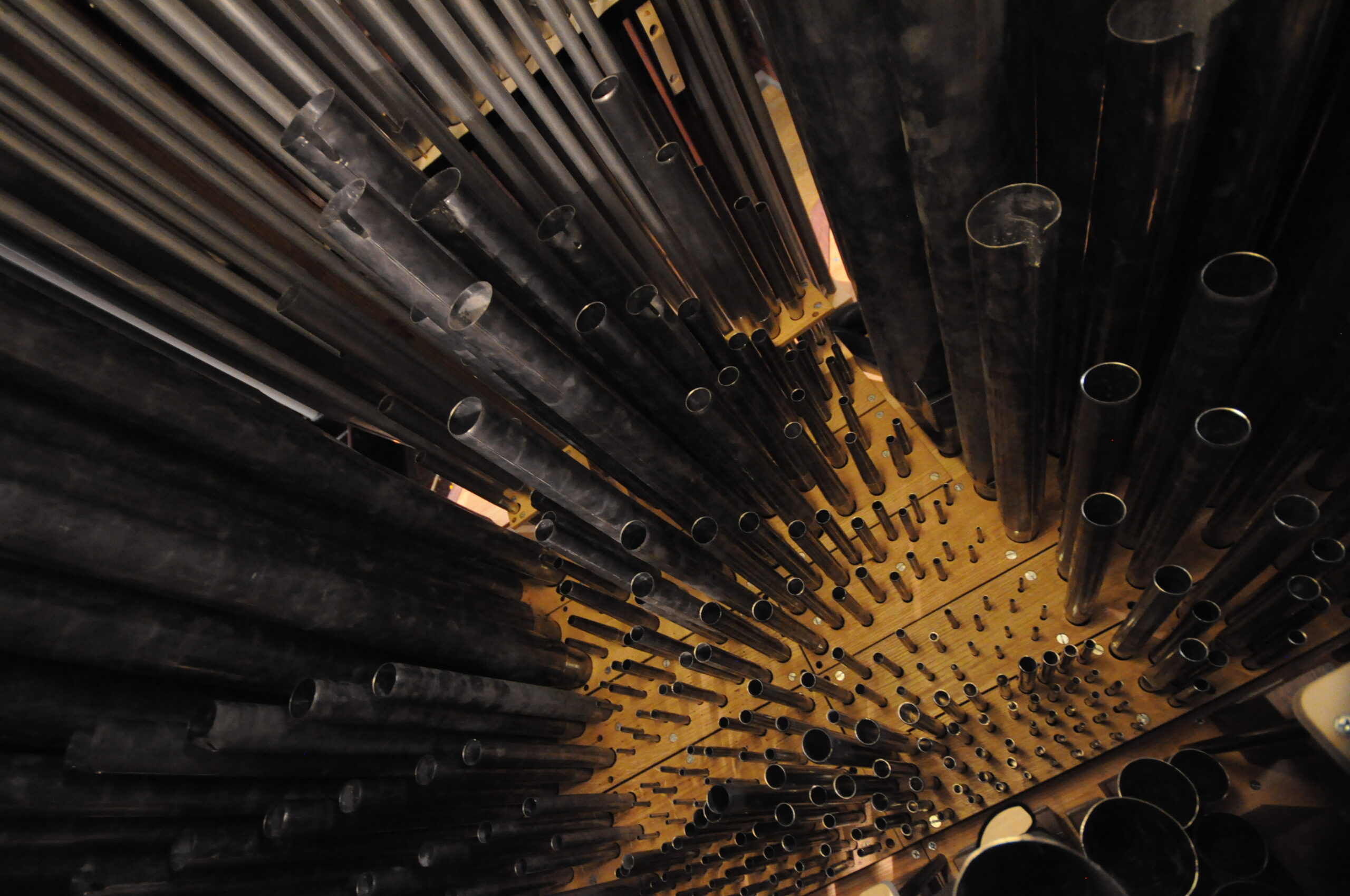

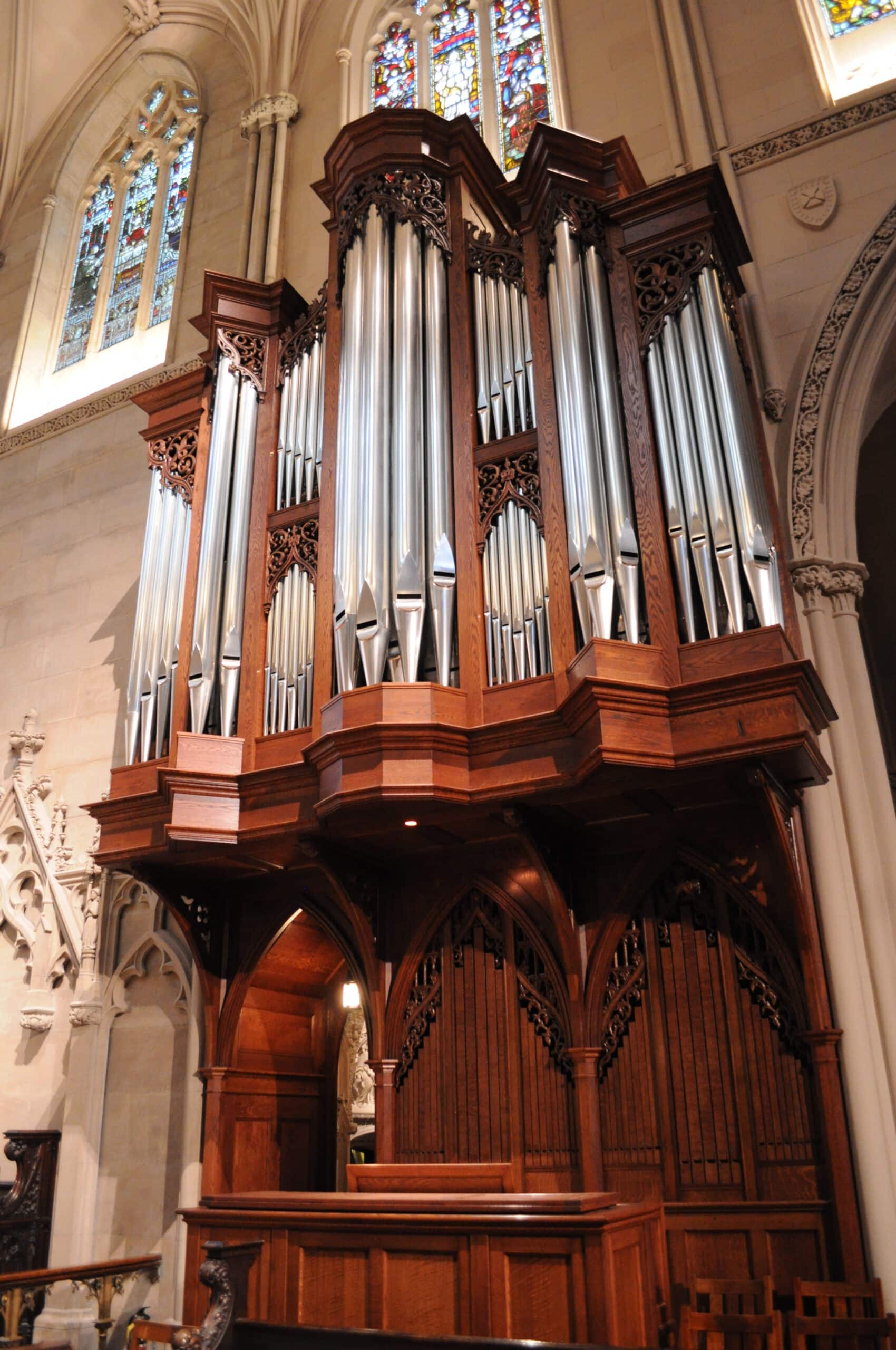

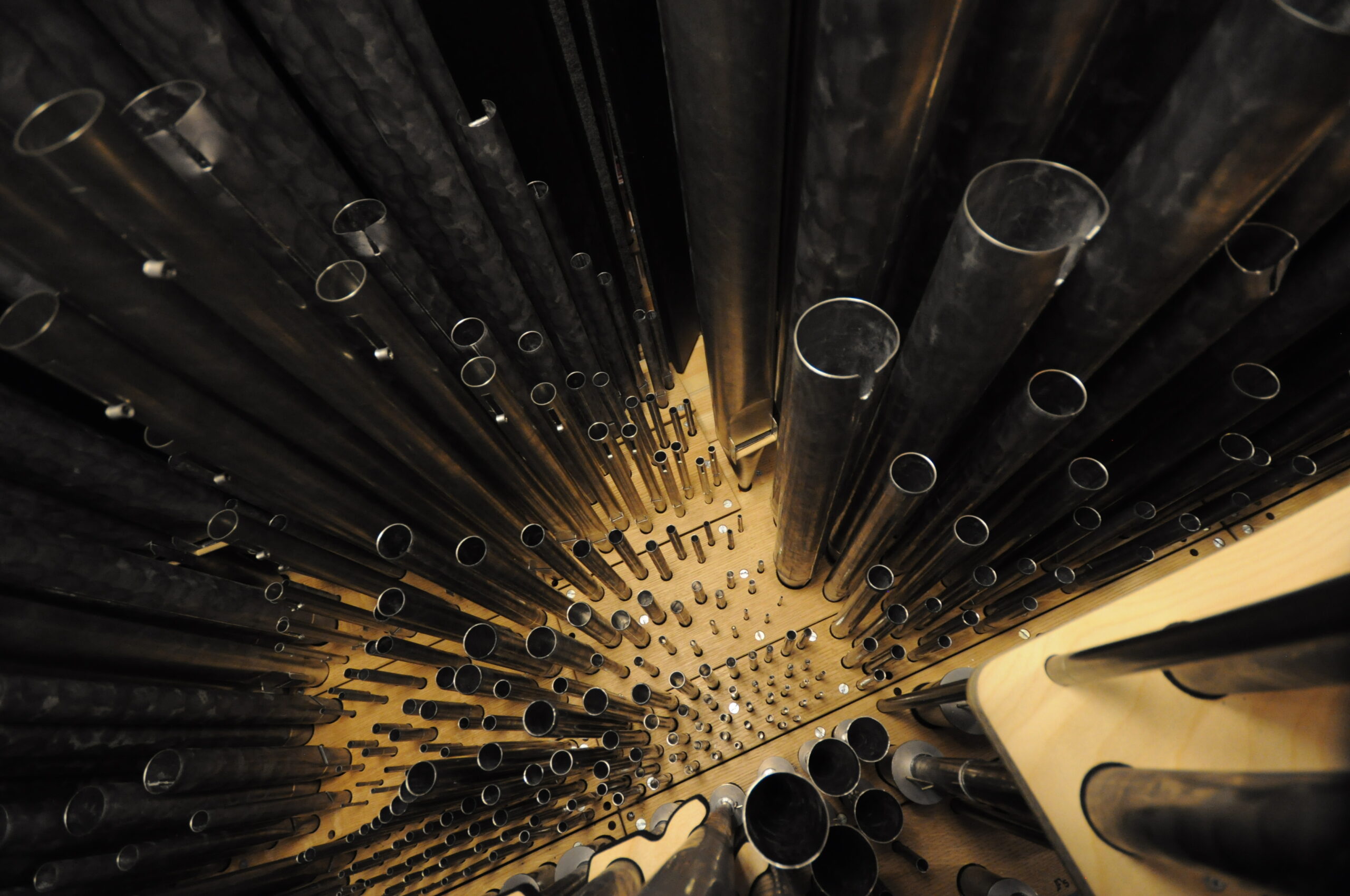

Great Manual Two, Upper South Case
85mm w.p. (3 1/4″)
16’ Double Open Diapason, façade
16’ Bourdon
8’ First Open Diapason
8′ Second Open Diapason
8’ Spire Flute
4’ Principal
4’ Spitz Flute
2 2/3’ Twelfth
2’ Fifteenth
1 3/5’ Seventeen
V Cornet g0-d’’’
V Mixture
IV Scharf
16’ Double Trumpet
8’ Trumpet
4’ Clarion

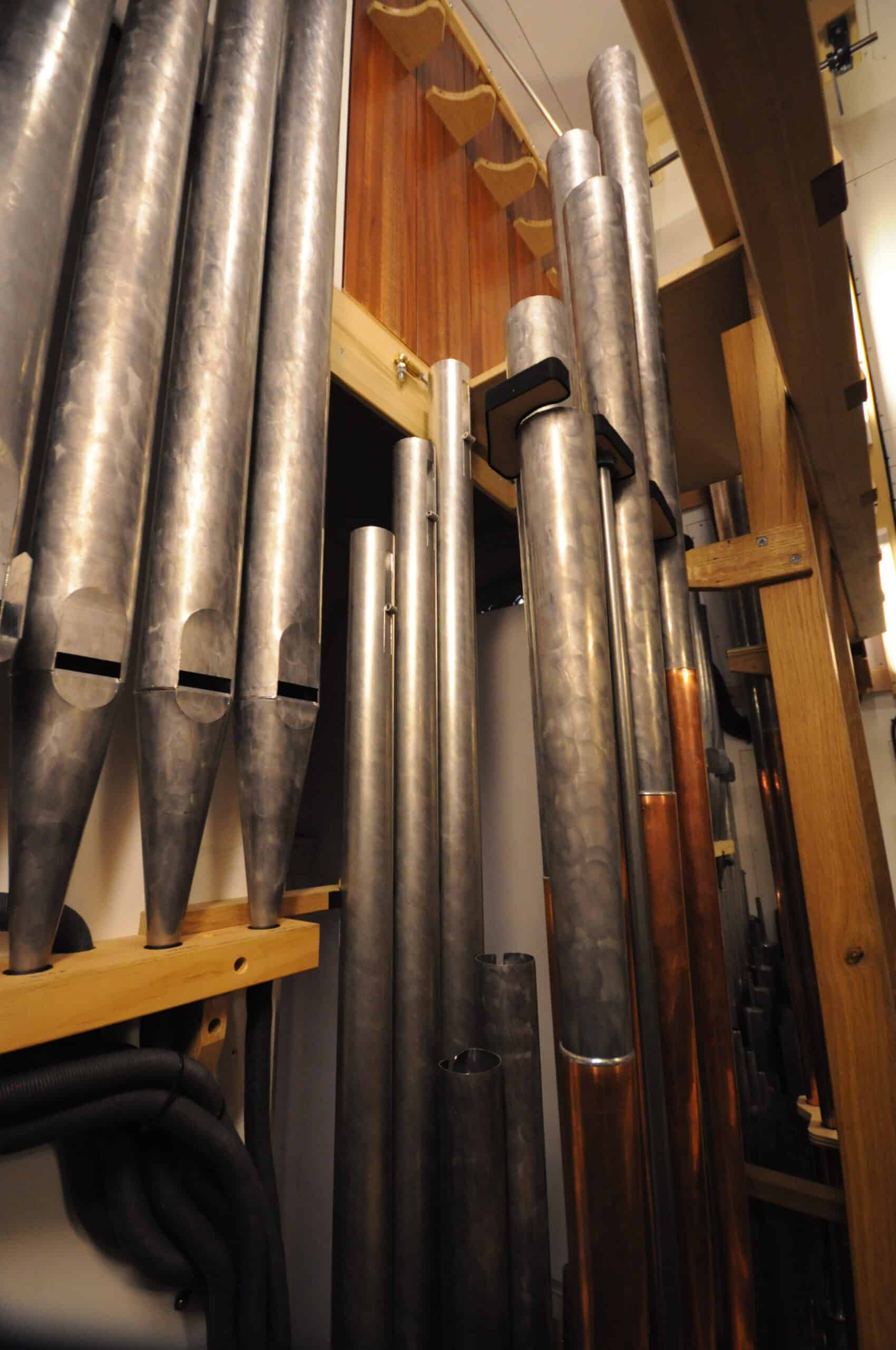

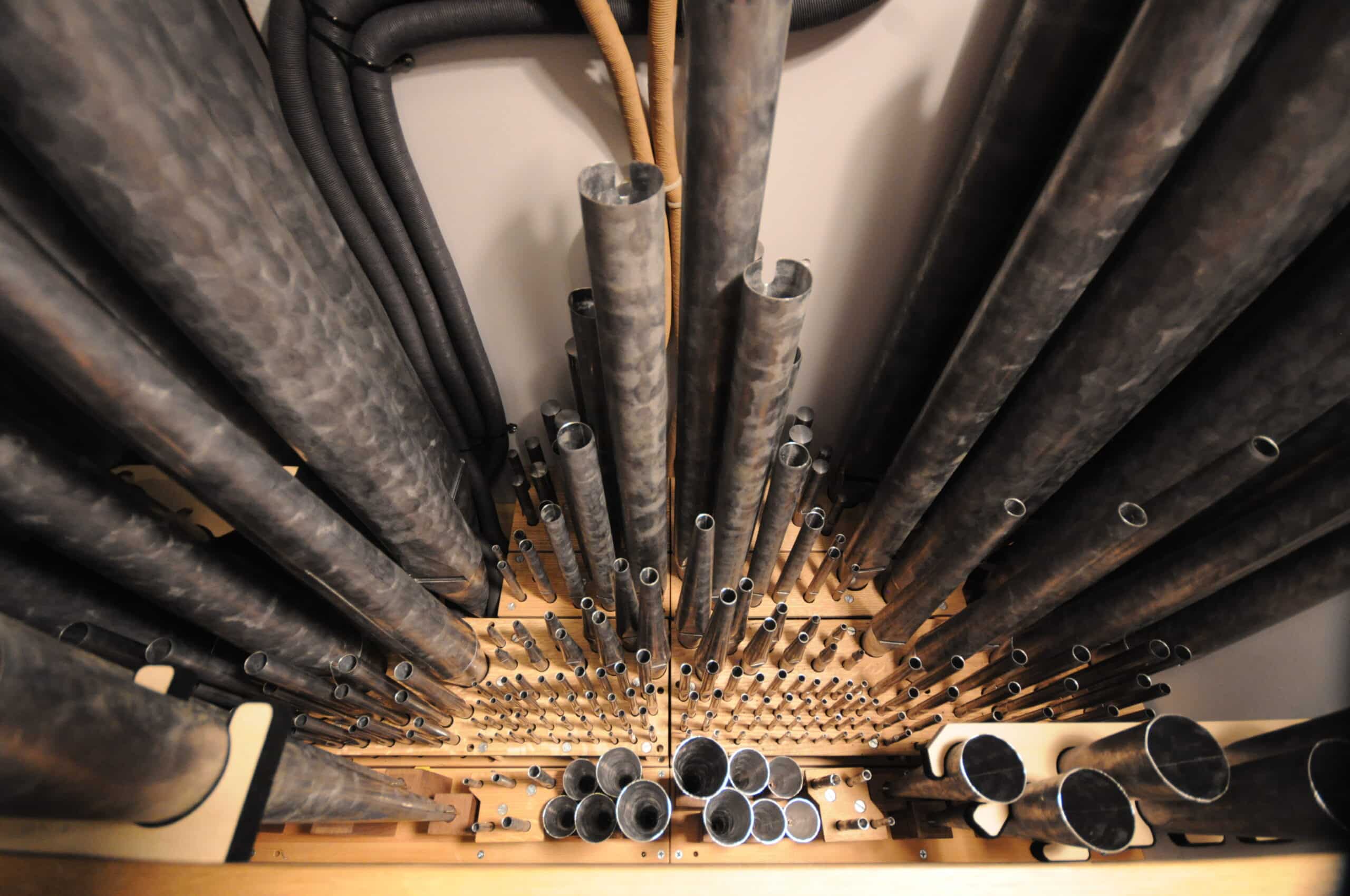

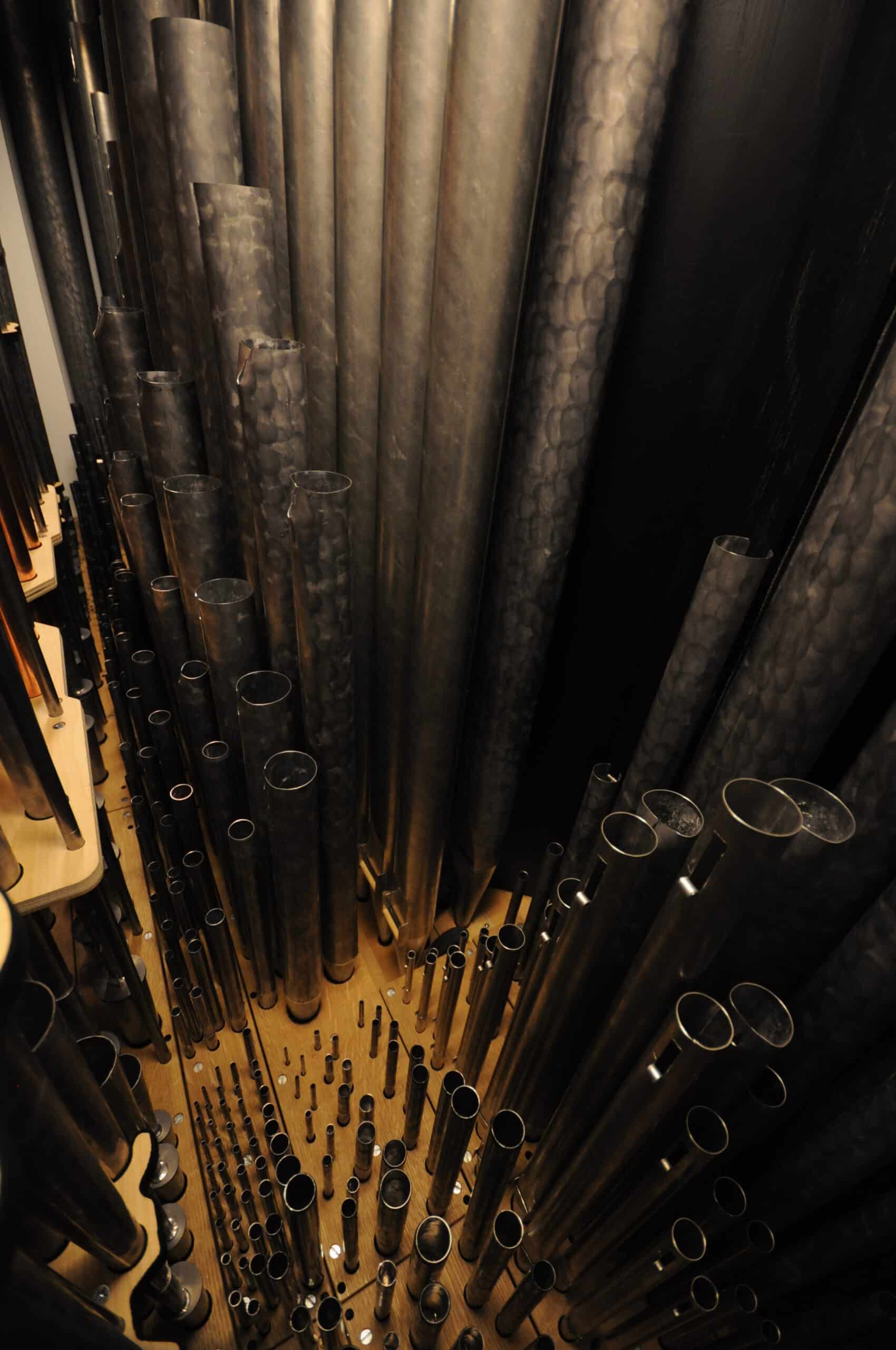

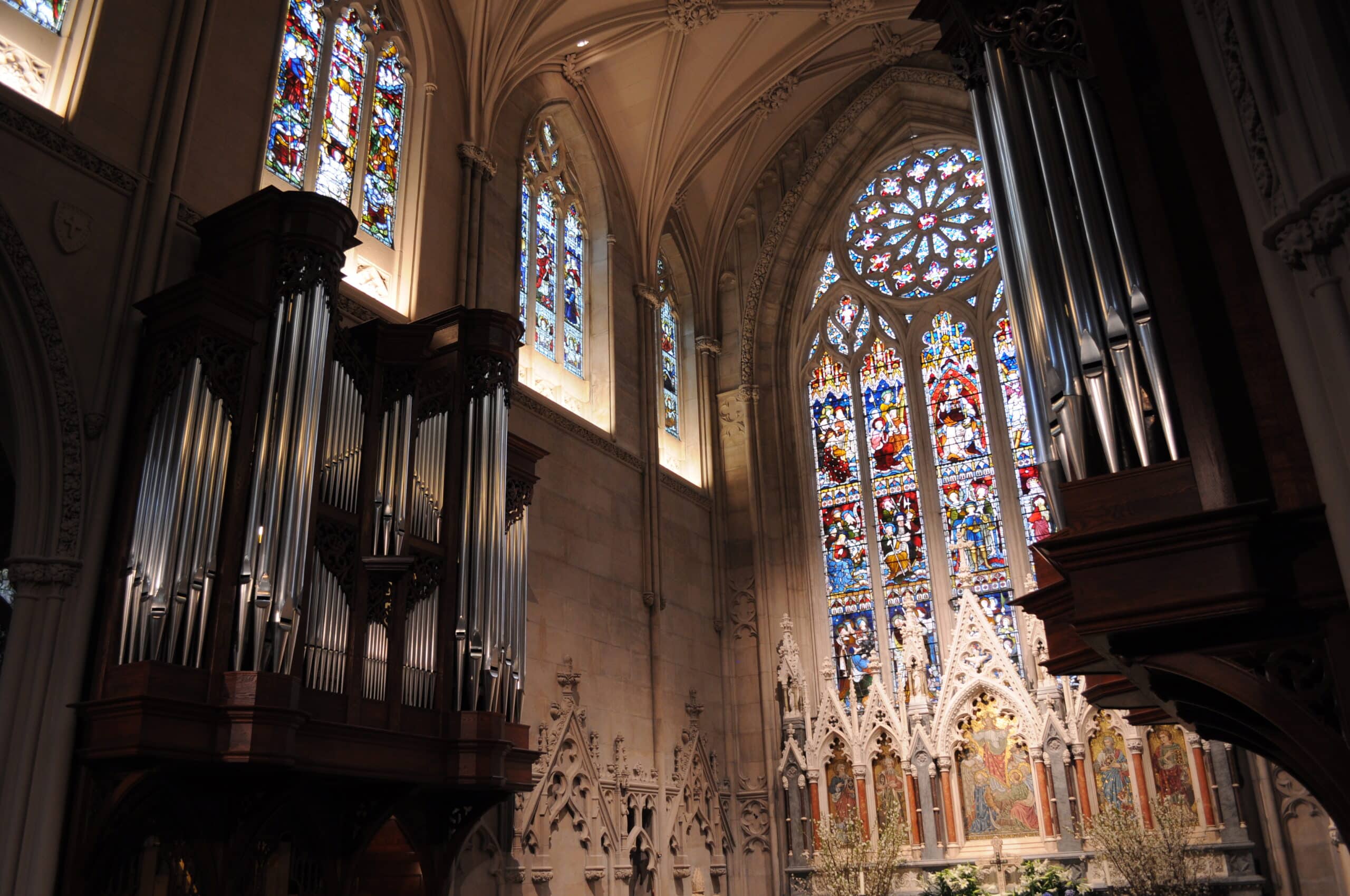

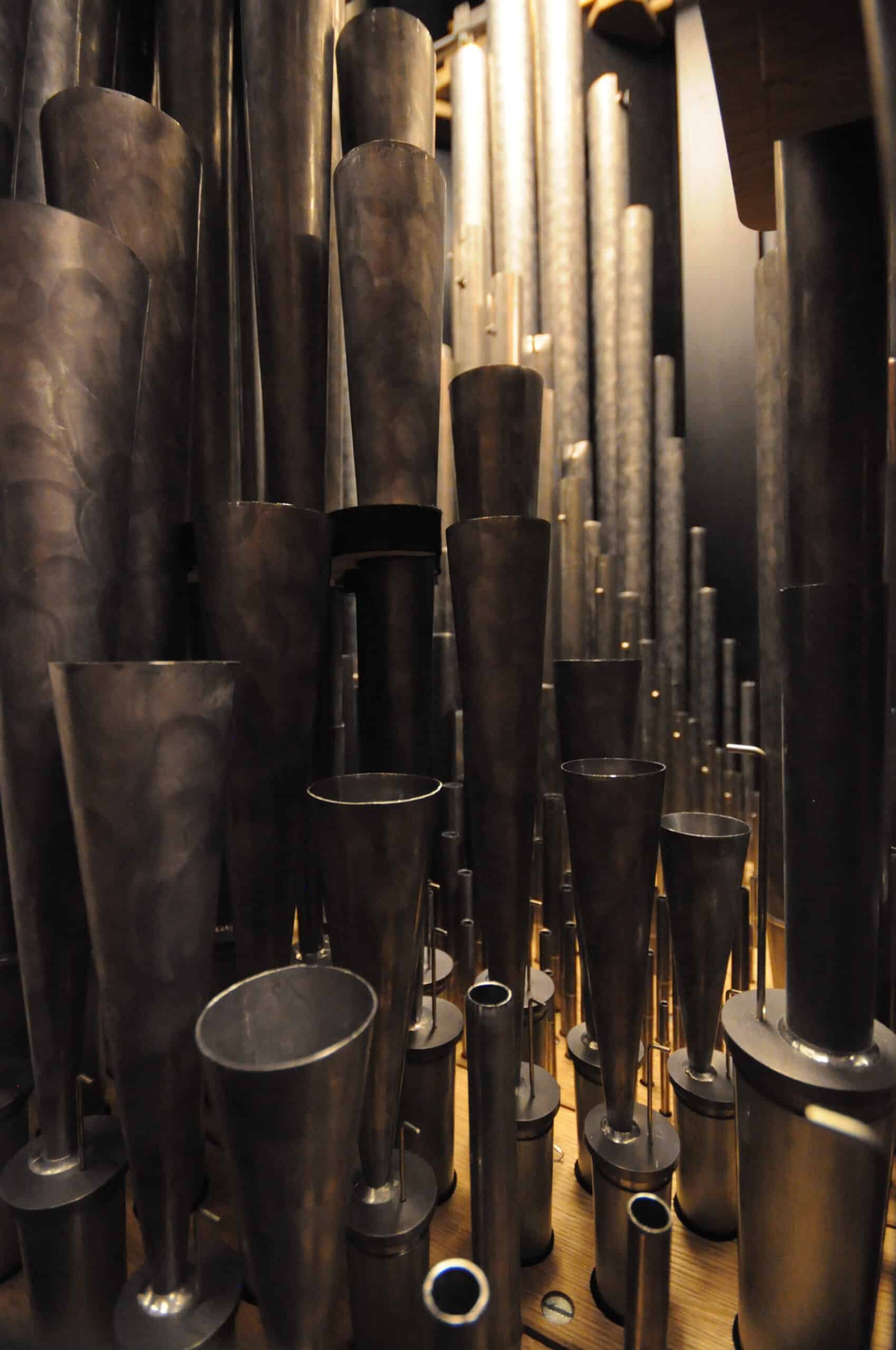

Swell Manual Three, Upper North Case, Enclosed
85mm w.p. (3 1/4″)
16’ Contra Gamba
8’ Façade Principal, façade
8’ Violin Diapason
8’ Rohr Fluteswell case
8’ Salicional
8’ Voix Celeste, (G)
4’ Principal
4’ Open Flute
2 2/3’ Nazard
2’ Fifteenth
2’ Wald Flute
1 3/5’ Tierce
V Mixture
16’ Contra Bassoon
8’ Cornopean
8’ Oboe
4’ Clarion
Tremulant

Choir Manual One, Lower South Case
70mm w.p. (2 3/4″)
8’ Principal Dolce, façade
8’ Stopped Diapason
8’ Flauto Dolce
8’ Unda Maris (c0)
4’ Octave
4’ Rohr Flute
2’ Gemshorn
1 1/3′ Larigot
II Sesquialtera
II-IV Scharff
16’ Cor Anglais
8’ Cremona
Tremulant
8’ Tuba (Solo, enclosed)
8’ Harmonic Trumpet (Solo, enclosed)

Solo Manual Four, Roosevelt Chamber
Enclosed, 125mm w.p. (5″)
8’ Harmonic Flute
8’ Gamba
8’ Gamba Celeste
8’ Viol d’Orchestre
8’ Viol Celeste
4’ Flauto Traverso
16’ Corno di Bassetto
8’ Orchestral Oboe
8’ Vox Humana
Tremulant
8’ Tuba (380mm w.p., 15” )
8’ Harmonic Trumpet (380mm w.p., 15” )
Solo 16′
Solo 4′

Choir Pedal, Lower North Case
75mm w.p. (3″)
16’ Bourdon
8’ Cello, façade
8’ Spitz Gedackt
4′ Clarabella
16’ Bassoon
8’ Schalmey

Main Pedal, Roosevelt Chamber
125mm w.p. (5″)
32’ Double Open Diapason, C to B in west gallery
32’ Contra Bourdon
16’ Open Diapason
16’ Subbass
16’ Violone
8’ Principal
8’ Spire Flute
4’ Fifteenth
V Mixture
32’ Contra Ophicleide
32’ Contra Fagott
16’ Trombone
16’ Fagott
8’ Trumpet
4’ Clarion
8’ Tuba (Solo)
8’ Harmonic Trumpet (Solo)

Couplers
Swell to Great 8’
Choir to Great 8’
Solo to Great 16’
Solo to Great 8’
Solo to Great 4’

Solo to Swell 16’
Solo to Swell 8’
Solo to Swell 4’

Swell to Choir 8’
Solo to Choir 16’
Solo to Choir 8’
Solo to Choir 4’

Great to Pedal 8’
Swell to Pedal 8’
Choir to Pedal 8’
Solo to Pedal 8’
Solo to Pedal 4’

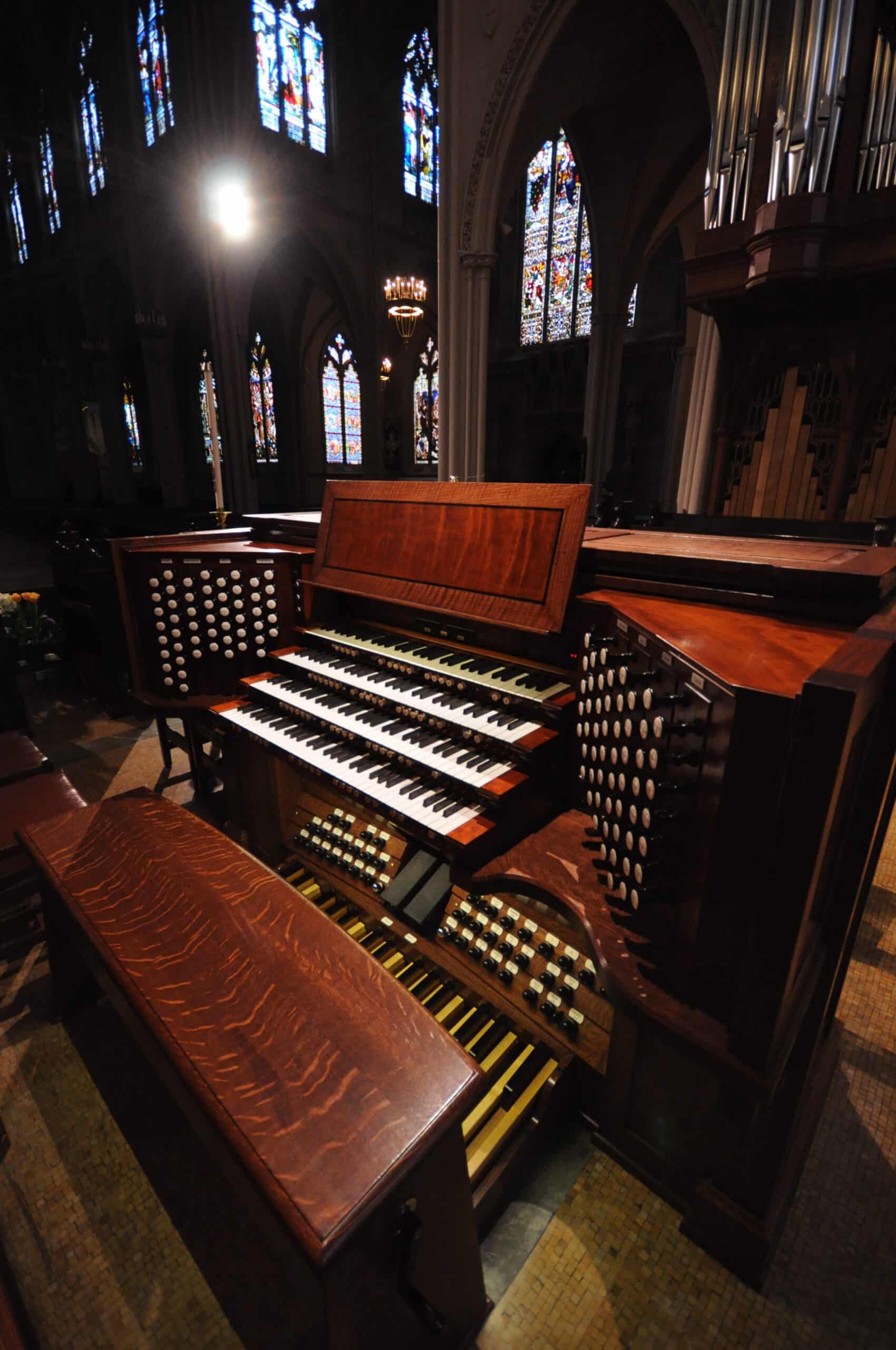

Manual Pistons
Great div. 1-8
Swell div. 1-8
Choir div. 1-8
Solo div. 1-8
Pedal div. 1-8
General 1-16
Sequencer forward (4)
Sequencer back (2)
Swell to Great (rev.)
Choir to Great (rev.)
Solo to Great (rev.)
Solo to Swell (rev.)
Swell to Choir (rev.)
Solo to Choir (rev.)
Tutti I (rev. with indicator)
Tutti II (rev. with indicator)
Tutti III (rev. with indicator)
Tutti IV (rev. with indicator)
Set
Scope
General Cancel

Toe Studs
General 1-16
Pedal div. 1-8
Sequencer forward
Sequencer back
Memory level up
Memory level down
Great to Pedal (rev.)
Swell to Pedal (rev.)
Solo to Pedal (rev.)
Swell to Great (rev.)
Solo to Great (rev.)
32’ Double Open Diapason (rev.)
32’ Bourdon (rev.)
32’ Ophicleide (rev.)
32’ Fagotto (rev.)
16’ Trombone (rev.)
Tutti I (rev.)
Tutti II (rev.)
Tutti III (rev.)
Tutti IV (rev.)
